AC motors · Product information

33, 35, 42 & 48 Series AC Motors

Flexible AC motor platforms for OEM and industrial applications

The 33, 35, 42 and 48 series provide established starting points for compact industrial, commercial and OEM equipment. SDT reviews the electrical supply, required output, duty, mounting and operating environment to identify a suitable platform and configure it around your application.

Four AC motor examples in a two-by-two arrangement

Motor range

Four Platforms. Configured Around Your Application.

From compact equipment to higher-output industrial motors, the four platforms provide different starting points for application-specific motor selection.

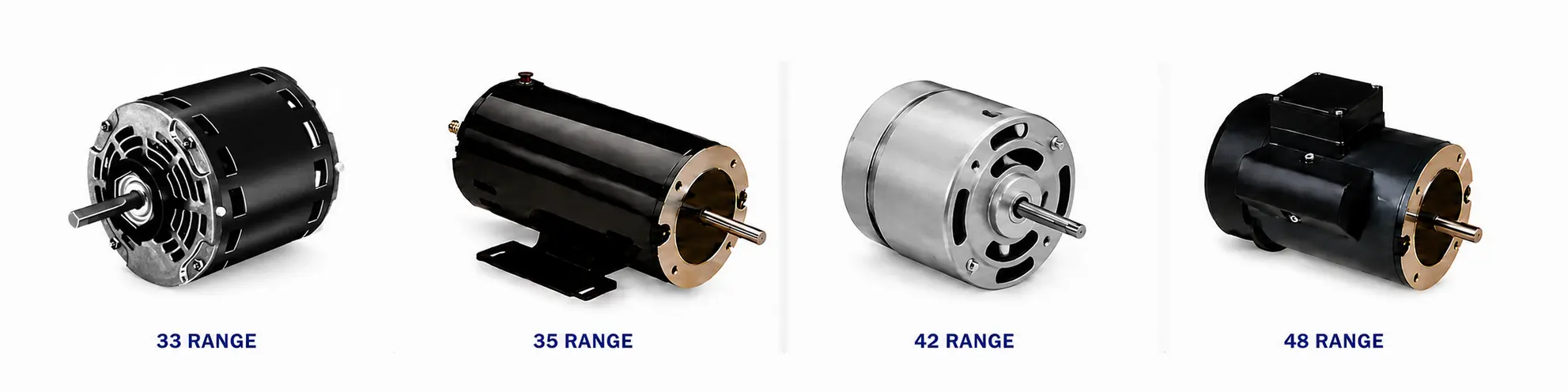

The 33, 35, 42 and 48 compact AC motor ranges aligned in a consistent product orientation and neutral industrial finish

Series	Frame Size (mm)	Output Range	Supply Voltage	Speed Range (50/60 Hz)	Typical Applications
33 Series	Ø 33	6–90 W	110–240 VAC	1,300–3,000 rpm (2, 4 pole)	Compact industrial and commercial equipment Pumps \| Fans \| Small machinery
35 Series	Ø 35	15–200 W	110–240 VAC	1,300–3,000 rpm (2, 4 pole)	Industrial and commercial equipment Pumps \| Blowers \| Control systems
42 Series	Ø 42	25–370 W	110–240 VAC	1,300–3,000 rpm (2, 4 pole)	Pumps Machinery \| OEM equipment \| Automation \| Material handling
48 Series	Ø 48	40–550 W	110–240 VAC	1,300–3,000 rpm (2, 4 pole)	Higher-duty industrial applications Pumps \| Conveyors \| Processing equipment

Available motor configurations

Fixed- and Variable-Speed AC Solutions

Select the electrical configuration around the supply, starting requirement, speed control, duty and thermal conditions—not frame size alone.

PSC Single-Phase Motors

Capacitor-run configurations for quiet, low-maintenance fixed-speed operation in fans, pumps and compact commercial equipment.

Three-Phase Induction Motors

Compact fixed-speed configurations for continuous industrial duty, machinery and OEM equipment.

Inverter-Duty Three-Phase Motors

Variable-speed configurations for operation with a suitably matched VFD, with winding, insulation, cooling and operating range confirmed for the application.

Available as complete AC gearmotor solutionsExplore right-angle, inline, parallel-shaft and application-specific geared configurations.Explore More

Application-specific options

Define the AC Motor Around the Equipment

These four decisions connect electrical performance, installation and duty. Hover, focus or tap each item for the engineering implication.

Electrical

Confirm the supply voltage, phase and frequency alongside required output, speed, starting method and any need for variable-speed control.

What this provides

Mechanical

Define the shaft, mounting and overall envelope around the equipment, including flange or foot arrangement and gearbox interfaces where needed.

What this provides

Environment

Match the enclosure, ingress protection, finish and ventilation to the operating ambient, contamination and available cooling.

What this provides

Application

Review load behaviour, starting torque, duty cycle and thermal limits against the expected operating life and service conditions.

What this provides

Selection guidance

Choose the Right AC Motor Route

Start with an established motor where it meets the duty. If the supply, starting behaviour or mounting needs differ, explore a controlled modification or a new design.

Learn More

AC motor enquiry

Share Your Application Information

Send the principal performance, power source, envelope, mounting, environment and duty requirements for an initial engineering review.

Send Your Requirements
