01
AC Servomotors
Seven AS Series frame platforms with matched servo drives for accurate speed, torque and position control in automation and machinery.
Explore More →
Precision controlled motion

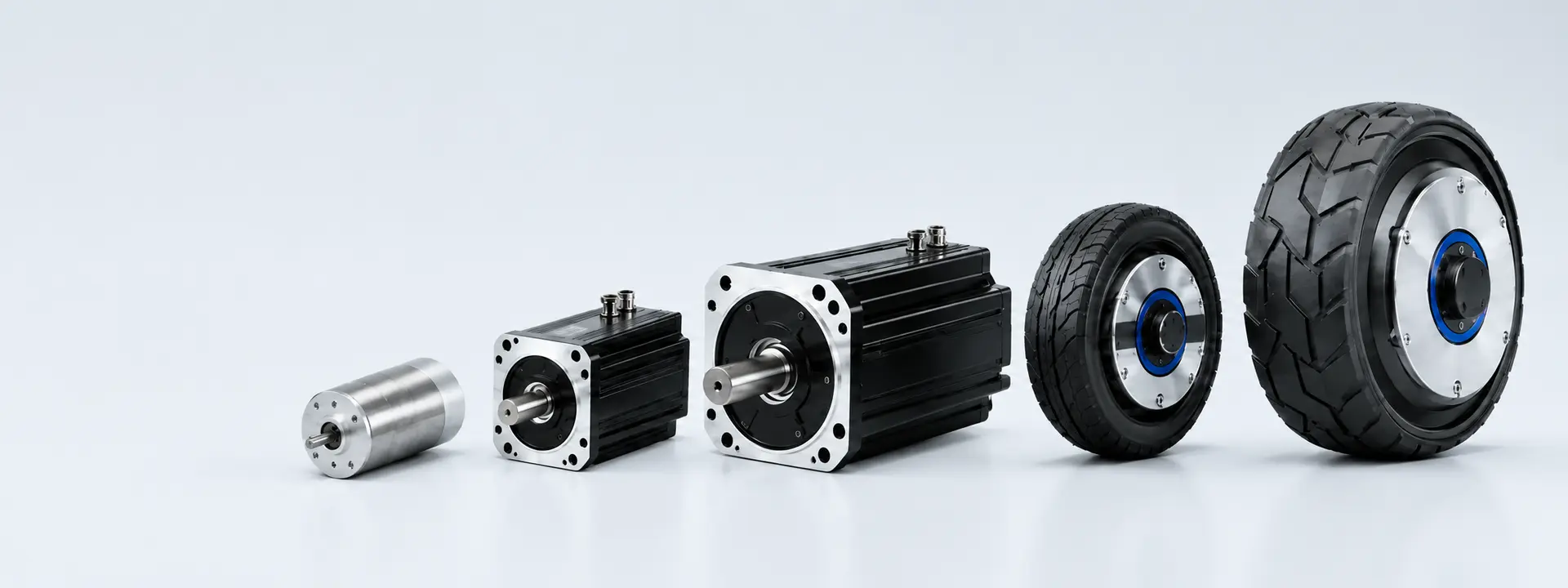

Servo Motors &Wheel Drives
Industrial and low-voltage servo platforms, integrated wheel drives and application-specific motion solutions for automation, robotics and mobile equipment.
High dynamicsAccuracy & responsiveness
Integrated solutionsMotors, drives & wheels
Custom optionsTailored to your application
Built for industryReliable performance
Motion solutions that move your business forward.Automation | Robotics | Mobile equipment
Core product families
Three Routes to Controlled Motion
Choose the closest product family, then use the technical sections to define the required configuration.
02
Low-Voltage Servo Motors
24–96 VDC motor platforms for battery-powered robotics, mobile machinery and compact controlled-motion systems.
Explore More →03
Integrated Wheel Drives
Motor, gearbox, wheel and feedback combined into a compact drive assembly for AGVs, AMRs and mobile equipment.
Explore More →

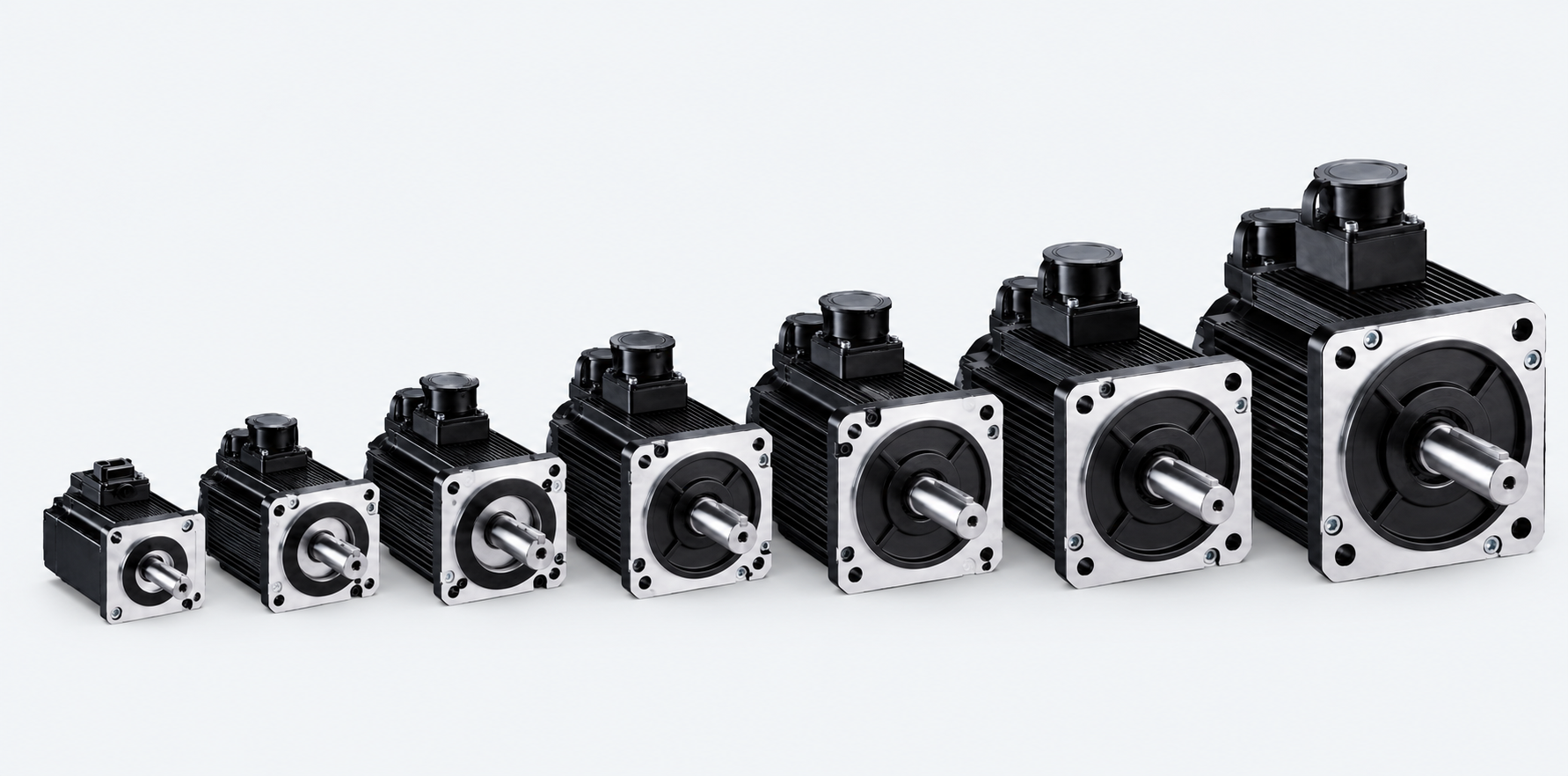

AC servomotors
Seven AS Servo Frames for Precise Motion Control
Permanent-magnet AC servomotors for automation, packaging, robotics and machine axes. Seven frame sizes provide a clear starting point, with winding, feedback, brake and matched servo drive selected together for the required speed, torque and positioning duty.
40–142 mmSeven AS frame platforms
50 W–10+ kW*Representative power envelope
200/230 & 400 VACApplication-matched voltage classes

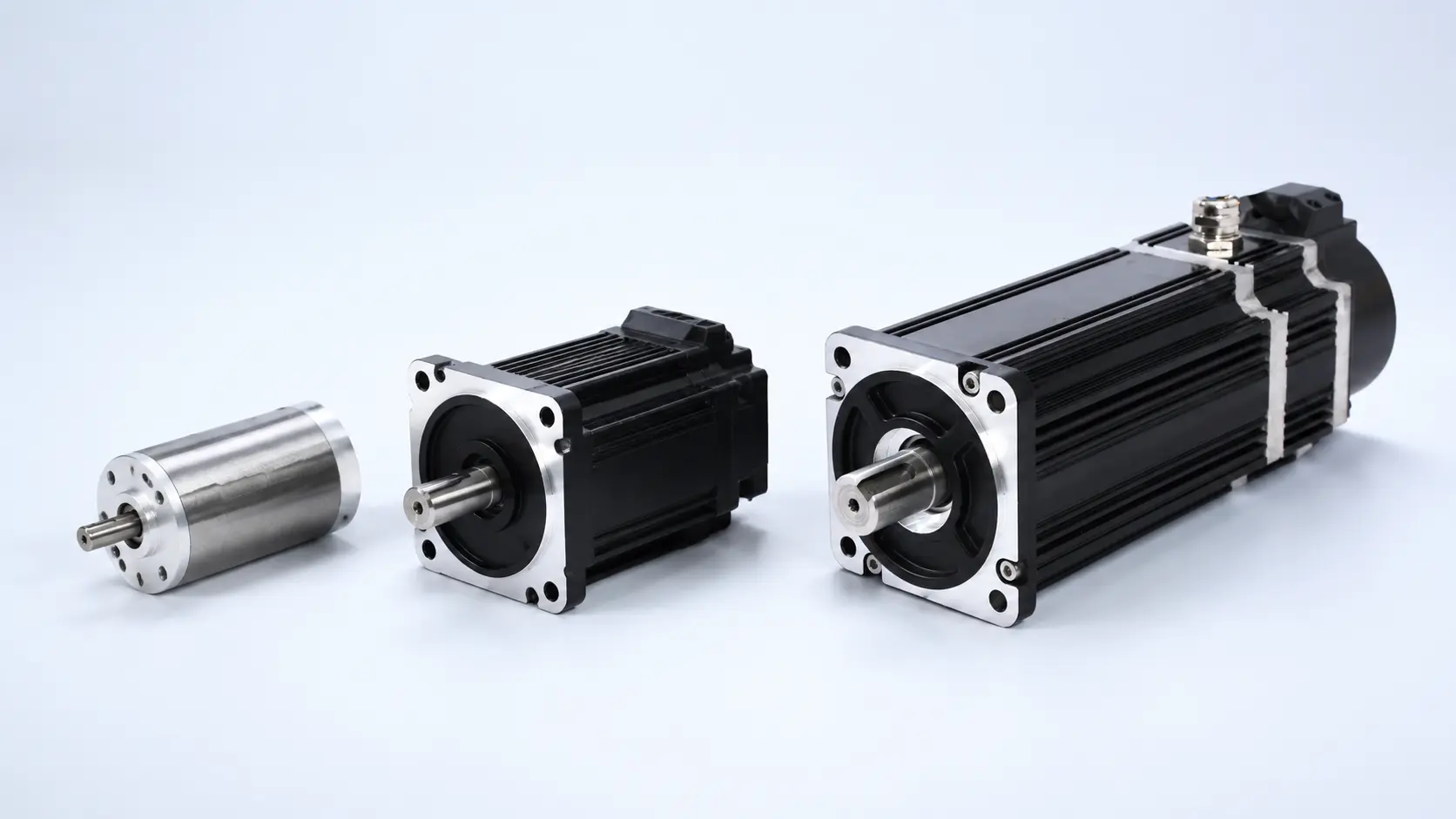

Low-voltage servo motors
Battery-Powered Precision Motion
Low-voltage motor platforms for robotics, mobile machinery and compact axes where efficient controlled motion must operate from a DC power source.
24–96 VDCTarget supply range*
Compact framesSpace-efficient integration
Hall · Encoder · BrakeFeedback and holding options
Integrated wheel drives

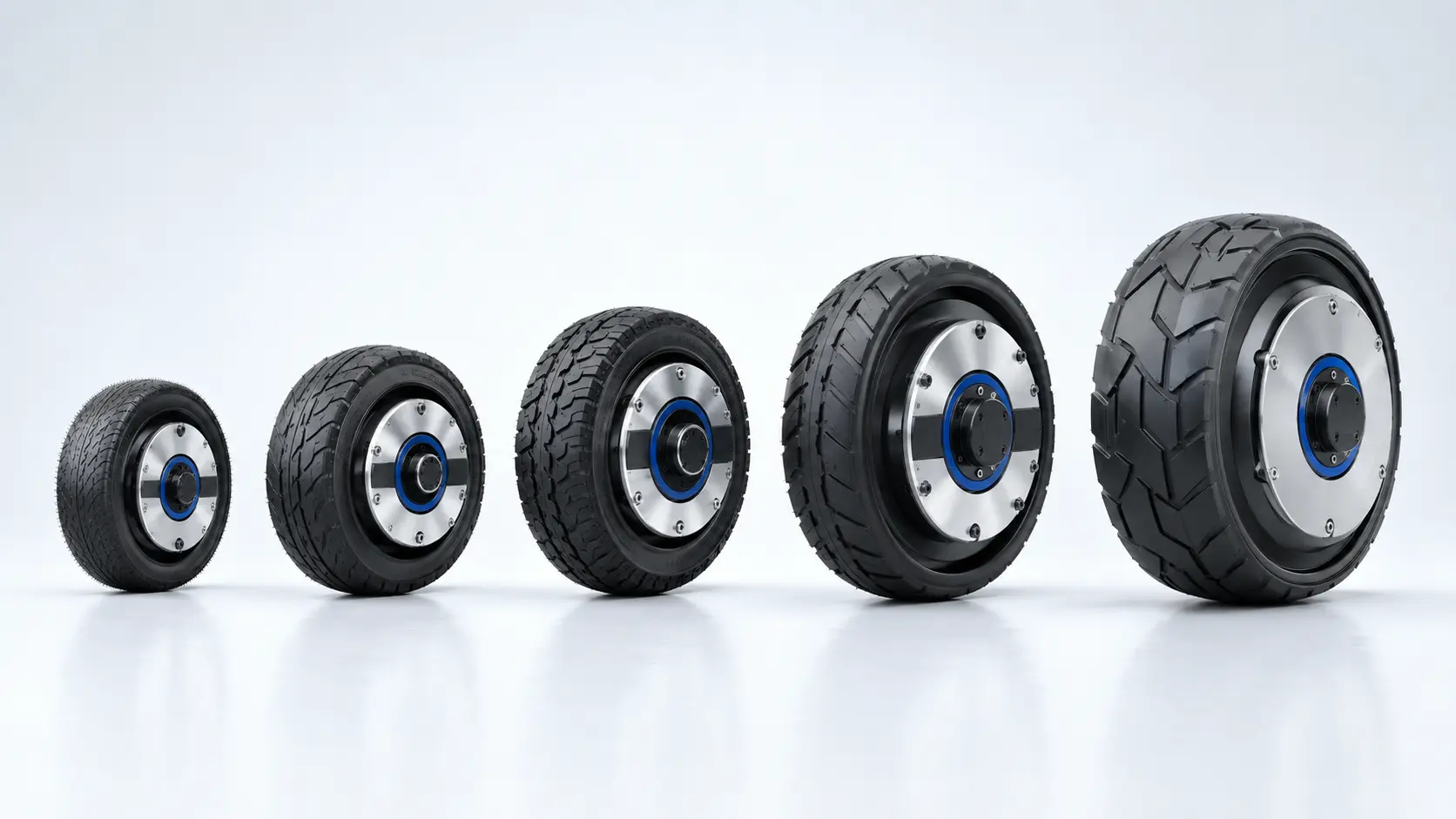

Wheel-Drive Range
Standard servo wheel drives for compact mobile platforms, extended by a configurable heavy-duty BLDC platform for AGVs, AMRs and industrial transport vehicles.
| Model | Wheel size (inch / mm) | Rated torque (Nm) | Peak torque (Nm) | Voltage (VDC) | Max. speed (rpm) |
|---|---|---|---|---|---|
| WD1 | 4.5 / 110 | 1.1 | 3 | 24 | 275 |
| WD2-L | 5.5 / 140 | 3.5 | 7 | 24 | 250 |
| WD2-H | 5.5 / 140 | 15 | 25 | 36 | 250 |
| WD3 | 8 / 200 | 15 | 24 | 36 | 110 |
| WD4 | 10 / 243 | 30 | 50 | 48 | 250 |
| WD5 | 12 / 315 | 30 | 50 | 48 | 250 |
Request Integrated Wheel-Drive Technical DataShare your load, wheel size and duty requirements to receive configuration-specific wheel-drive information.
Application-specific dataRequest Wheel-Drive Data →

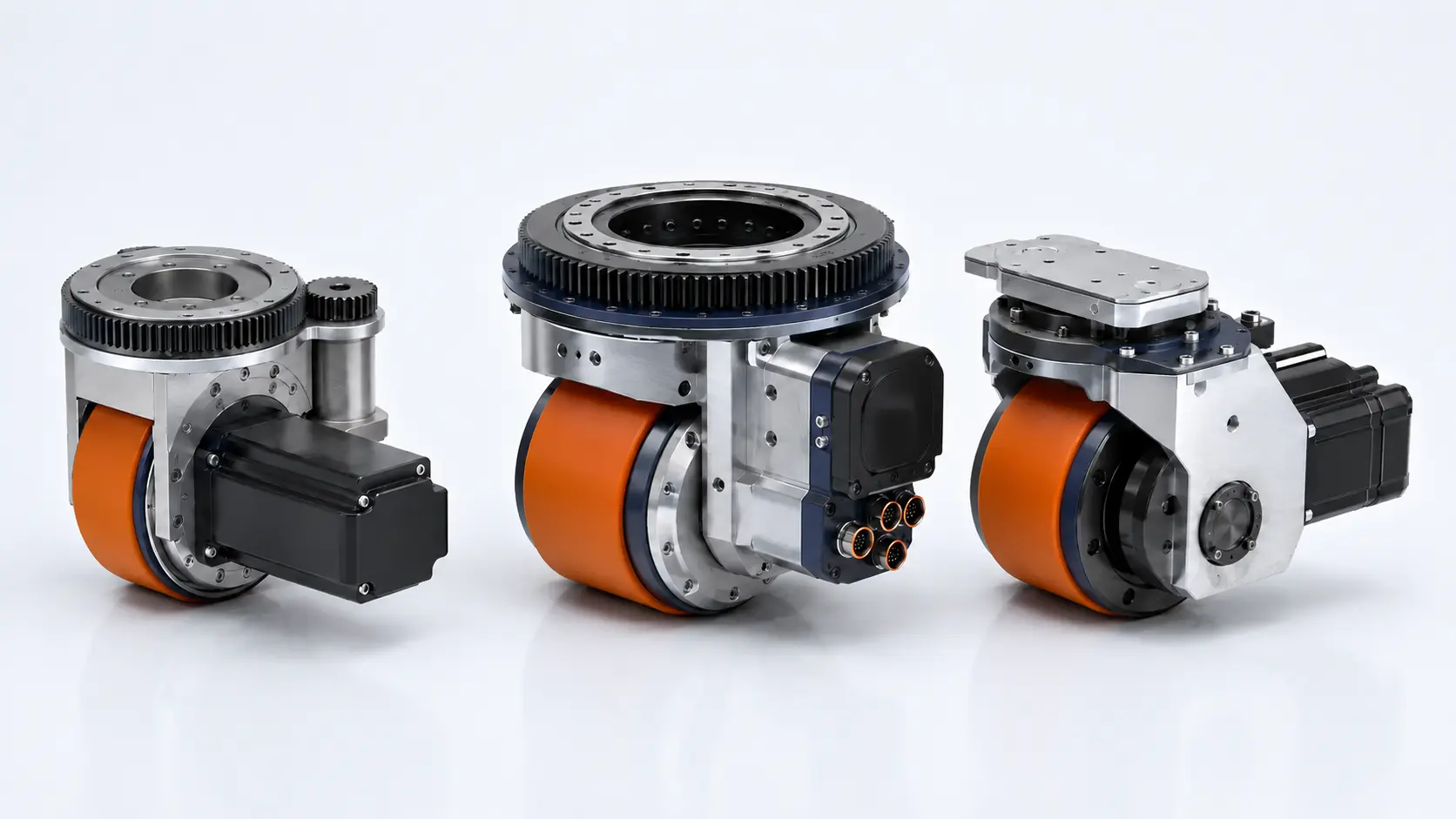

Heavy-duty AGV & AMR platform
High-Torque BLDC Wheel-Drive Option
A compact motor, reduction gearbox and polyurethane wheel assembly for heavier automated vehicles, electric stackers, tractors and industrial mobile equipment. Traction-only and combined drive-and-steer configurations can be reviewed around the vehicle architecture.
Application-led configurationMotor winding, reduction ratio, feedback, brake, steering arrangement, mounting interface and wheel material are selected against the load and duty.
Motor technologyBLDC
Supply voltageUp to 48 VDC
Wheel diameter250 mm
Maximum travel speedUp to 3 m/s
Maximum gearbox torqueUp to 200 Nm
Vehicle payloadUp to 2,000 kg*
AccelerationUp to 2 m/s²
ConfigurationTraction or drive-and-steer
*Stated vehicle payload is based on two drive wheels. Maximum gearbox torque is not directly equivalent to continuous or rated wheel torque. Final wheel load, continuous and peak torque, duty cycle, gradient, braking, radial loading, bearing life, tyre, thermal limits, ingress protection, feedback and safety functions are confirmed for each application. Compliance with ISO 3691-4 or ISO 13849-1 depends on the validated vehicle and control-system architecture, not the wheel-drive unit alone.
Preliminary selection framework
Define the Controlled-Motion System
These four inputs establish the motor, drive, feedback and mechanical architecture. Hover, focus or tap each item for the engineering consequence.
Where the range fits
Main Applications
Servo and wheel-drive solutions for controlled industrial and mobile motion.

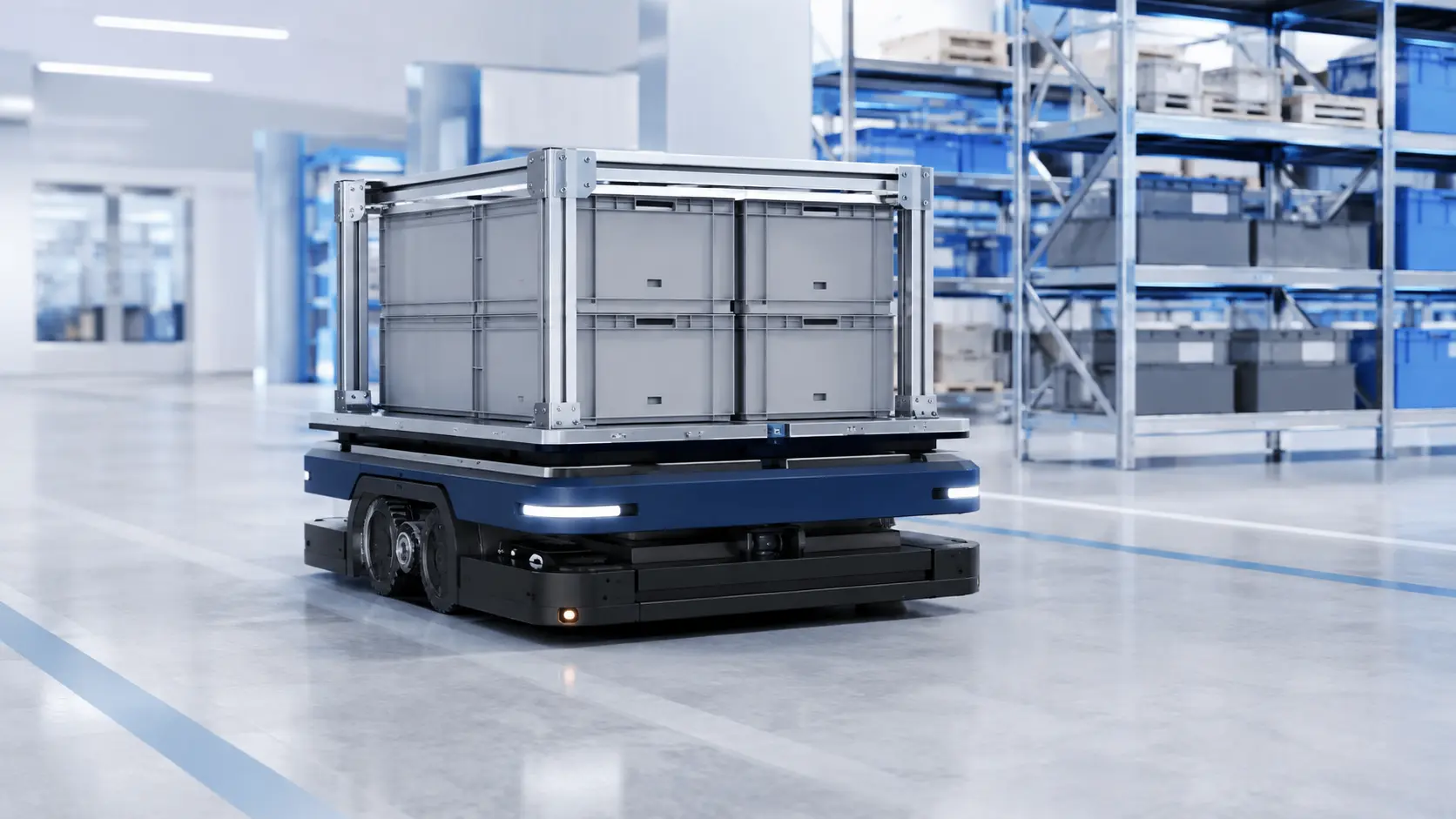

AGVs & AMRs
Autonomous material movement for warehouses, factories and logistics systems.

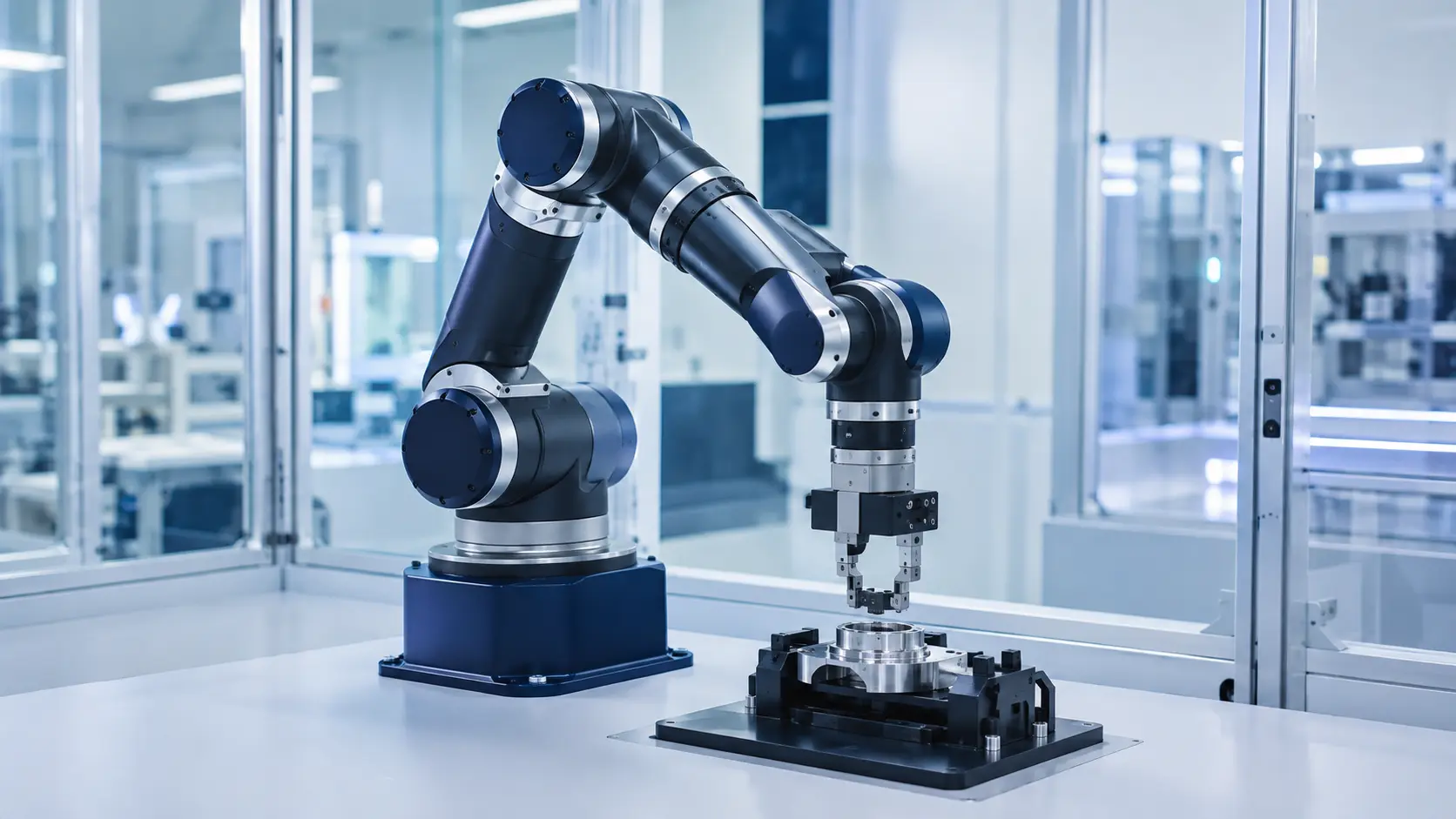

Robotics
Accurate servo-controlled joints and handling axes for industrial and service robots.
Machine Automation
Positioning, indexing and linear-motion axes for precision automated machinery.

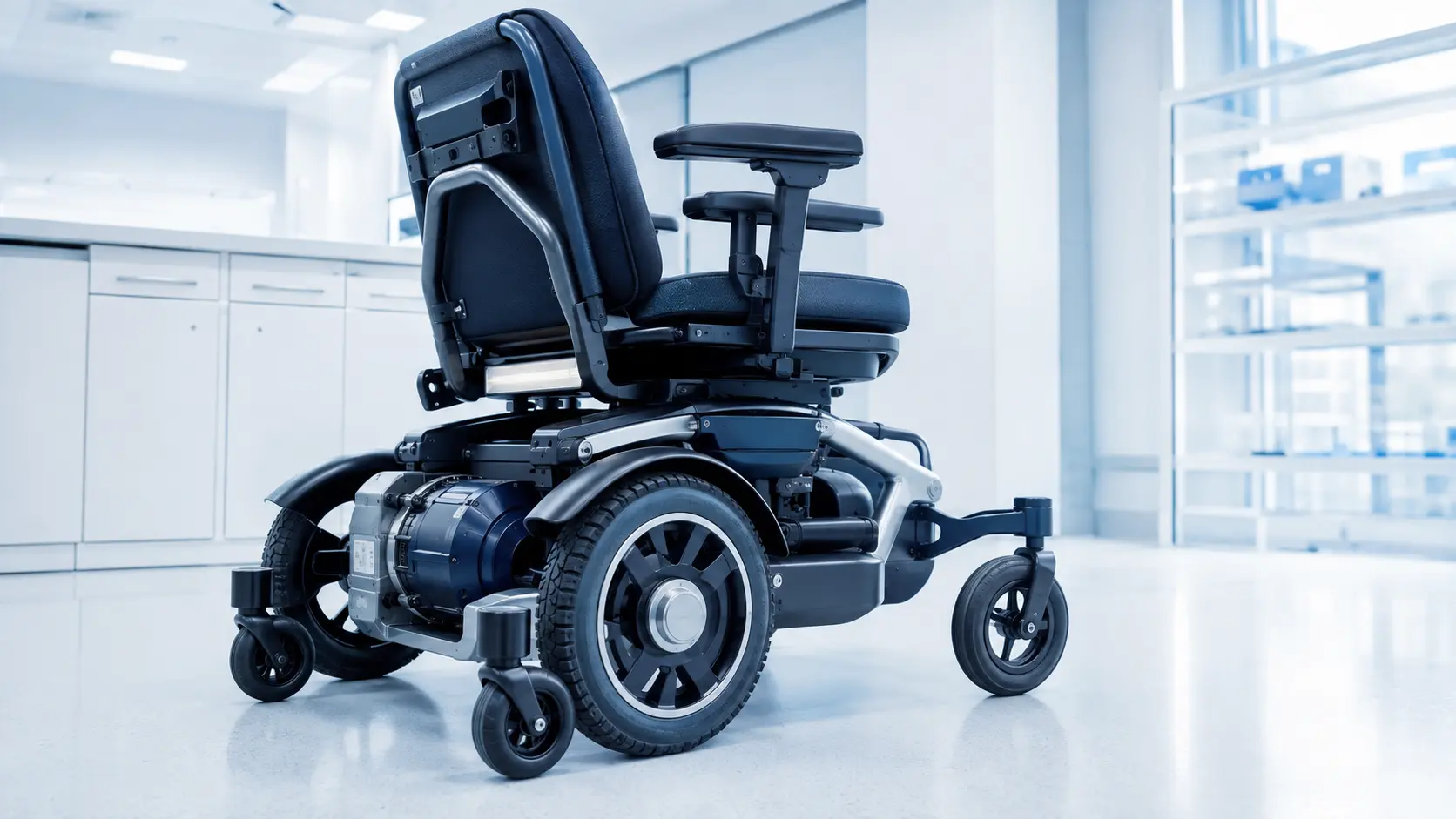

Medical & Mobility
Compact controlled wheel-drive solutions for powered mobility equipment.

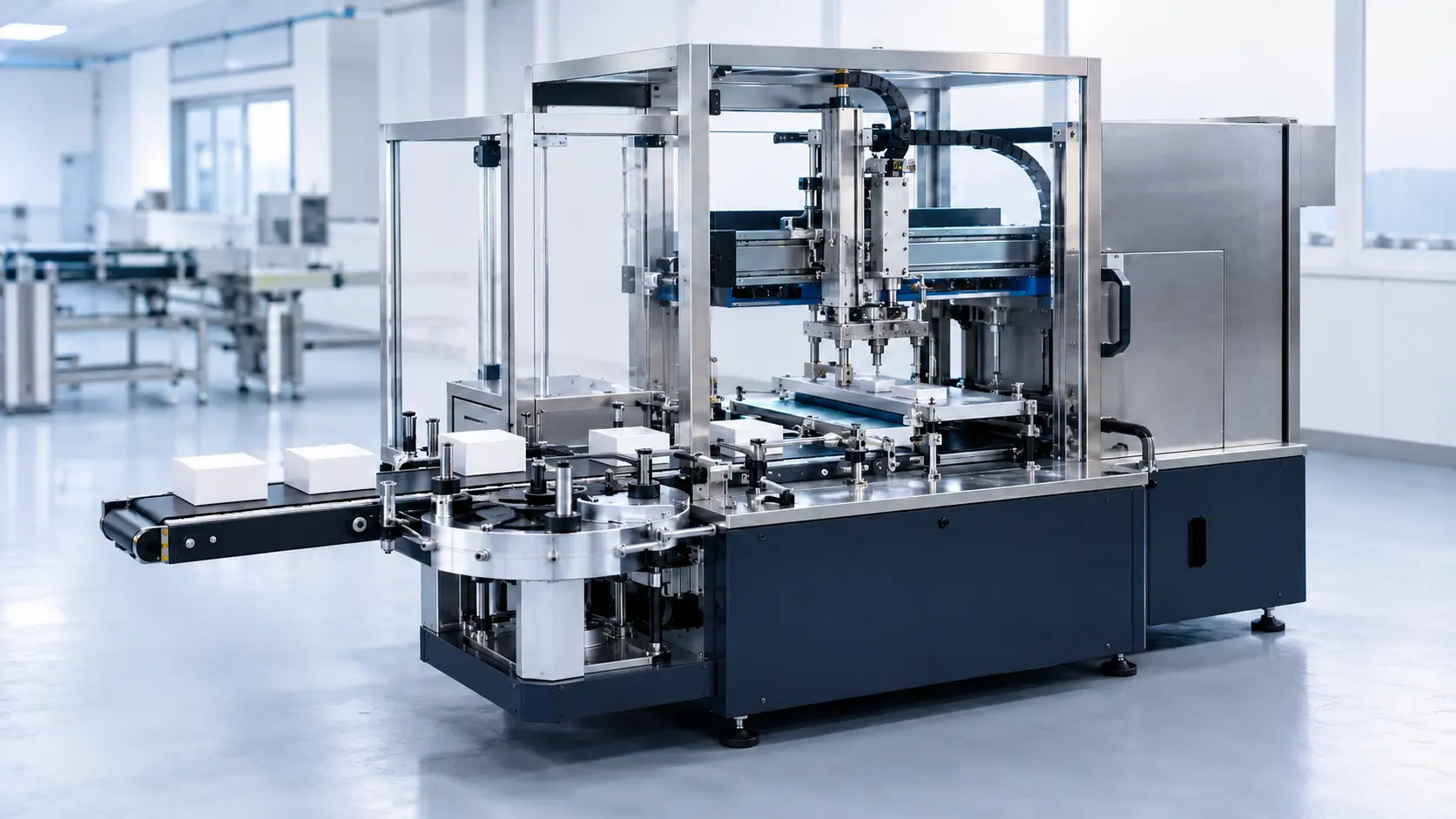

Packaging Machinery
Repeatable indexing, handling and process motion for packaging equipment.

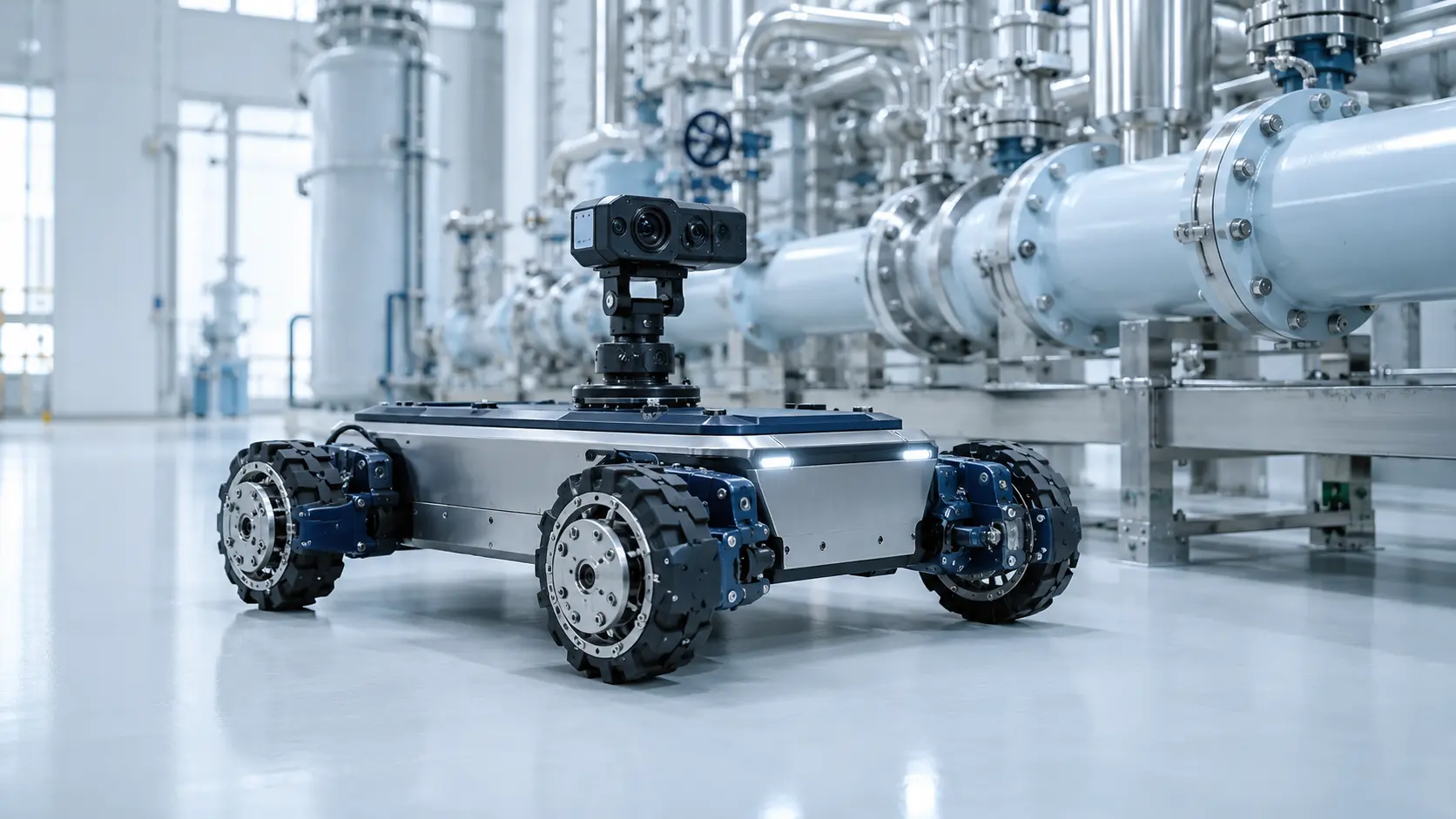

Inspection Vehicles
Controlled mobile platforms for industrial inspection and monitoring duties.
Engineering & customisation
Motor, Drive, Feedback and Mechanics—Considered Together
Windings, feedback, brakes, shafts, flanges, connectors, gearheads, wheels and matched drives can be reviewed around the application and production requirement.
Define the right servo system
Share Your Motion Requirements
Provide the load, speed, torque, duty cycle, power source, mechanical envelope and operating environment.
