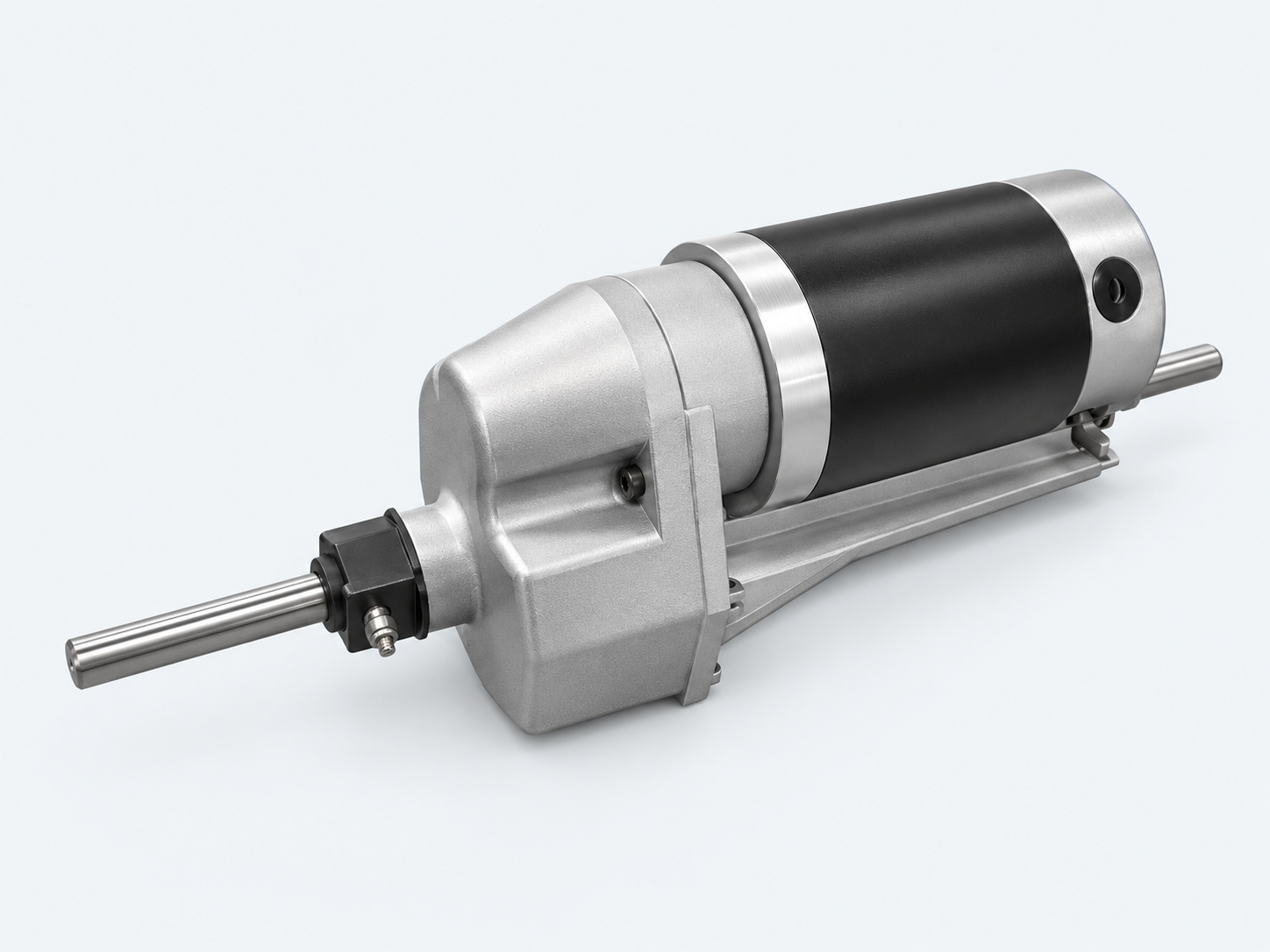

STX-B1
Brushed DCTransaxle
Integrated vehicle drive systems
TransaxleDrive Systems
Compact and robust PMDC, brushless and application-specific transaxle solutions configured around vehicle load, speed, ratio, braking and chassis integration.
12–72 VBattery platforms
150 W–11 kWOutput capability
Custom ratiosApplication-matched gearing
Rugged & reliableDemanding environments
Engineered for real-world performanceMotion | Control | Integration
STX Transaxle Drive Systems
SDT offers several series of power-differentiating transaxles—STX-B1, STX-B2, STX-B3, STX-B4 and customised series. Engineered for high reliability and performance, our transaxles are designed for medical mobility and utility vehicle applications.

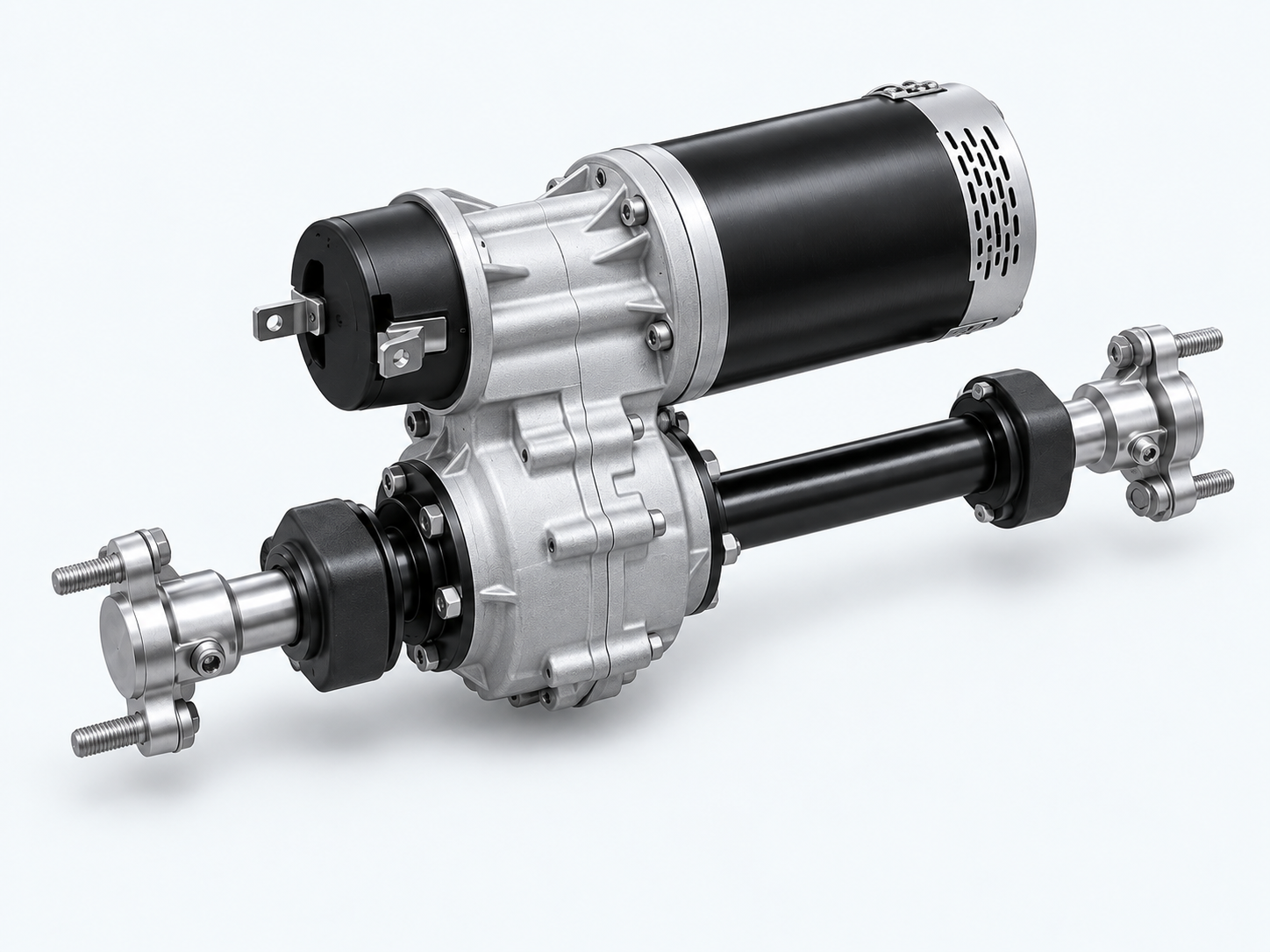

STX-B2
Brushed DCTransaxle

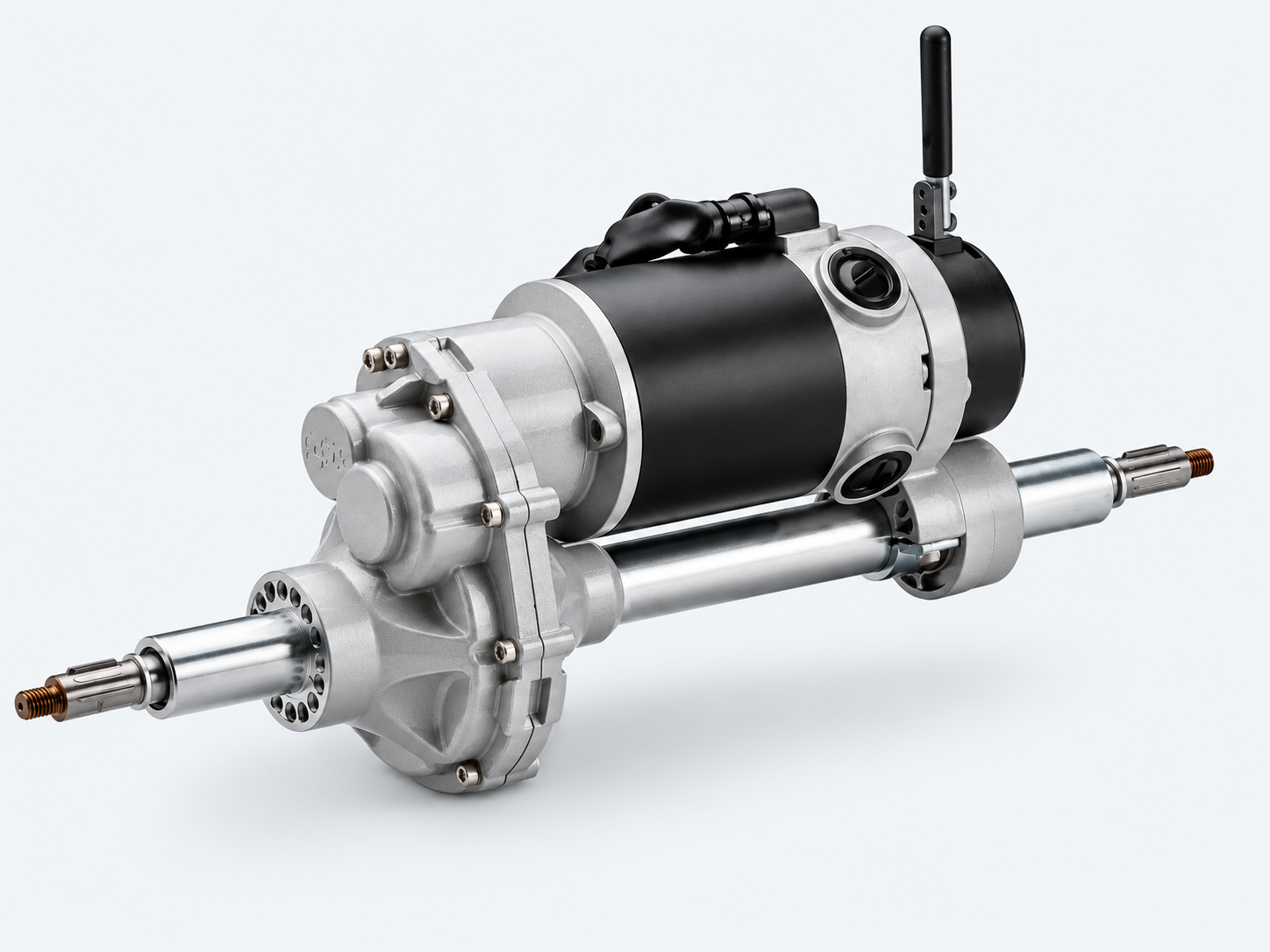

STX-B3
Brushed DCTransaxle

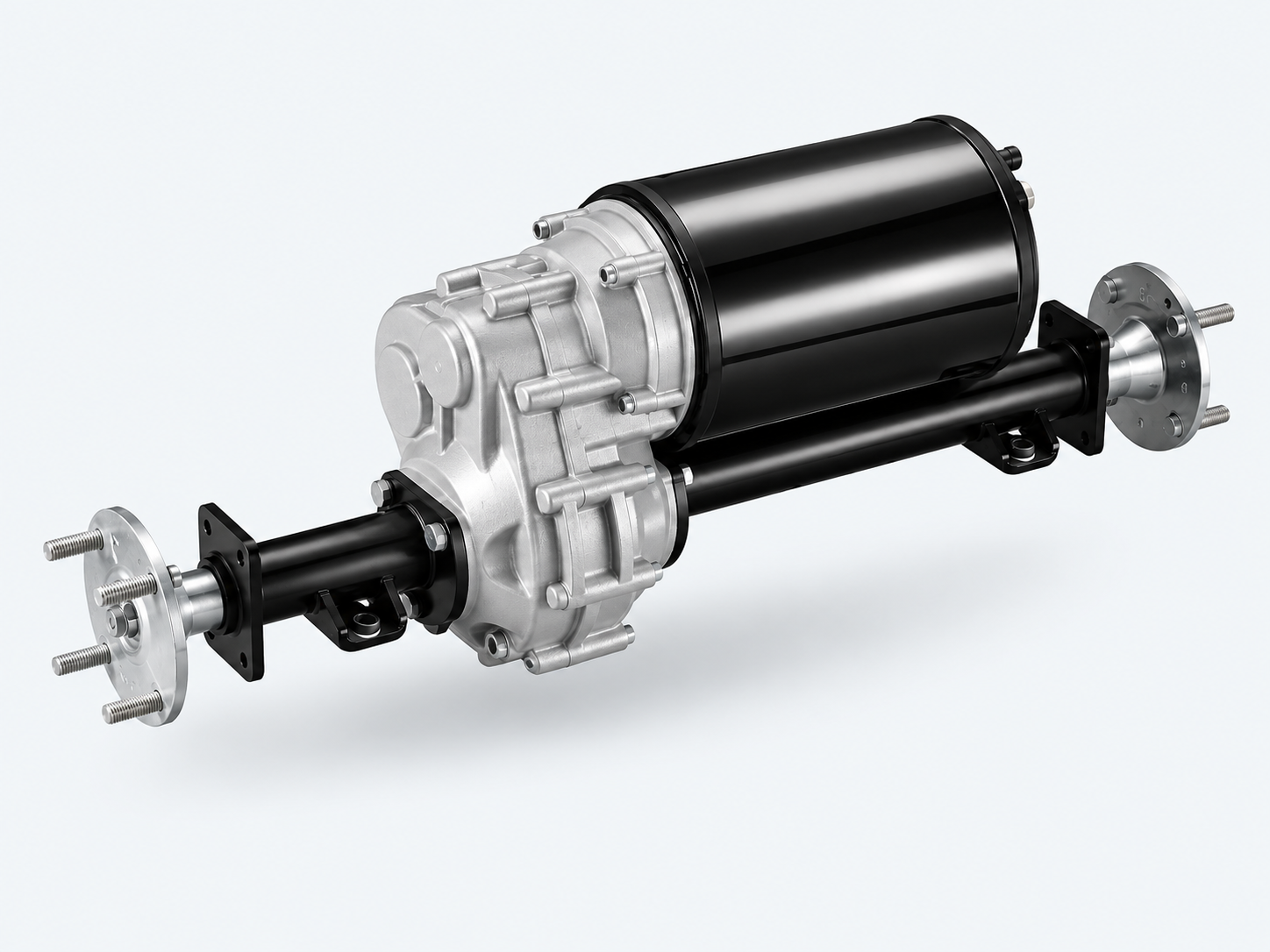

STX-B4
Brushed DCTransaxle

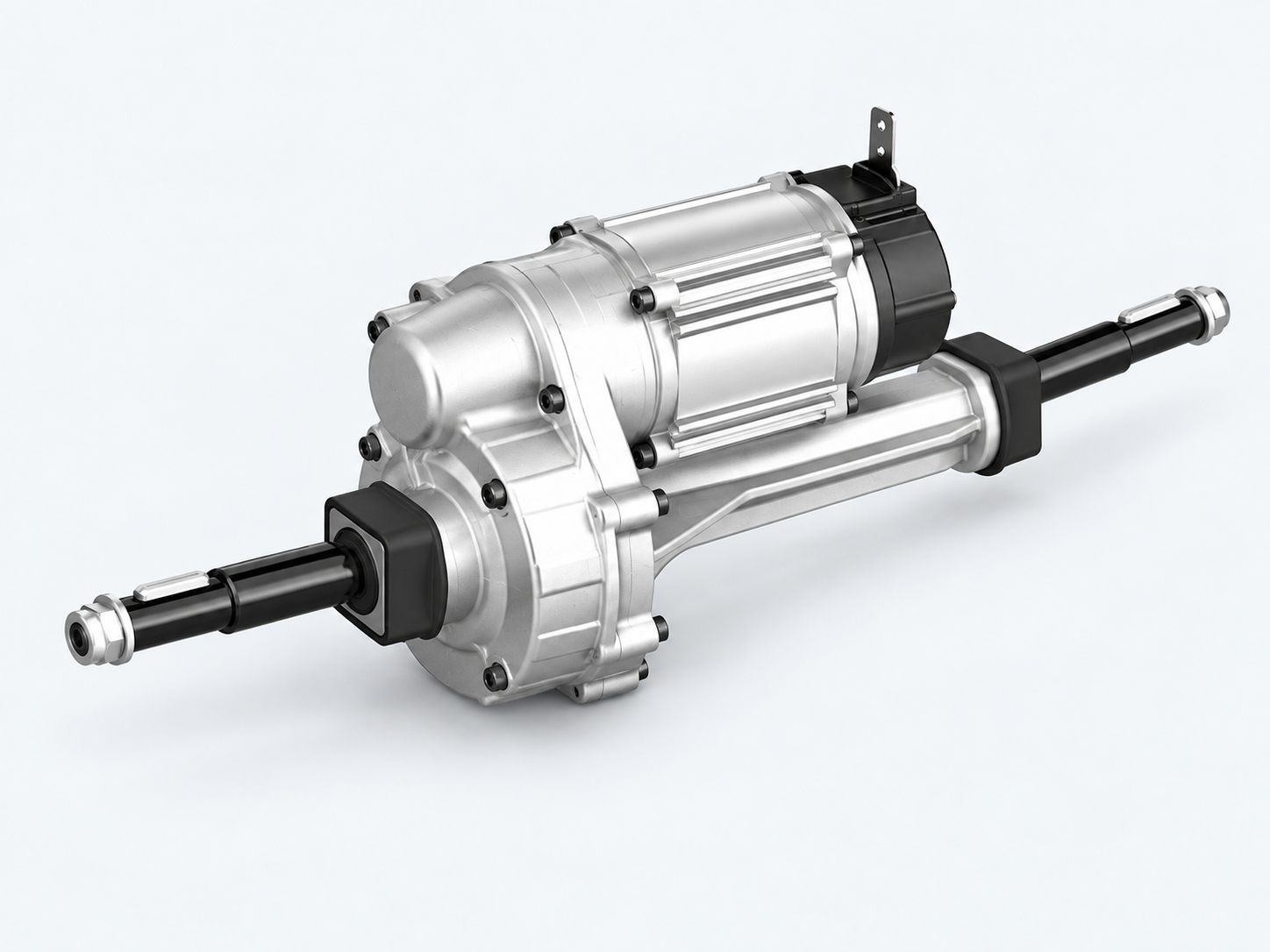

STX-E1
Brushless DCTransaxle

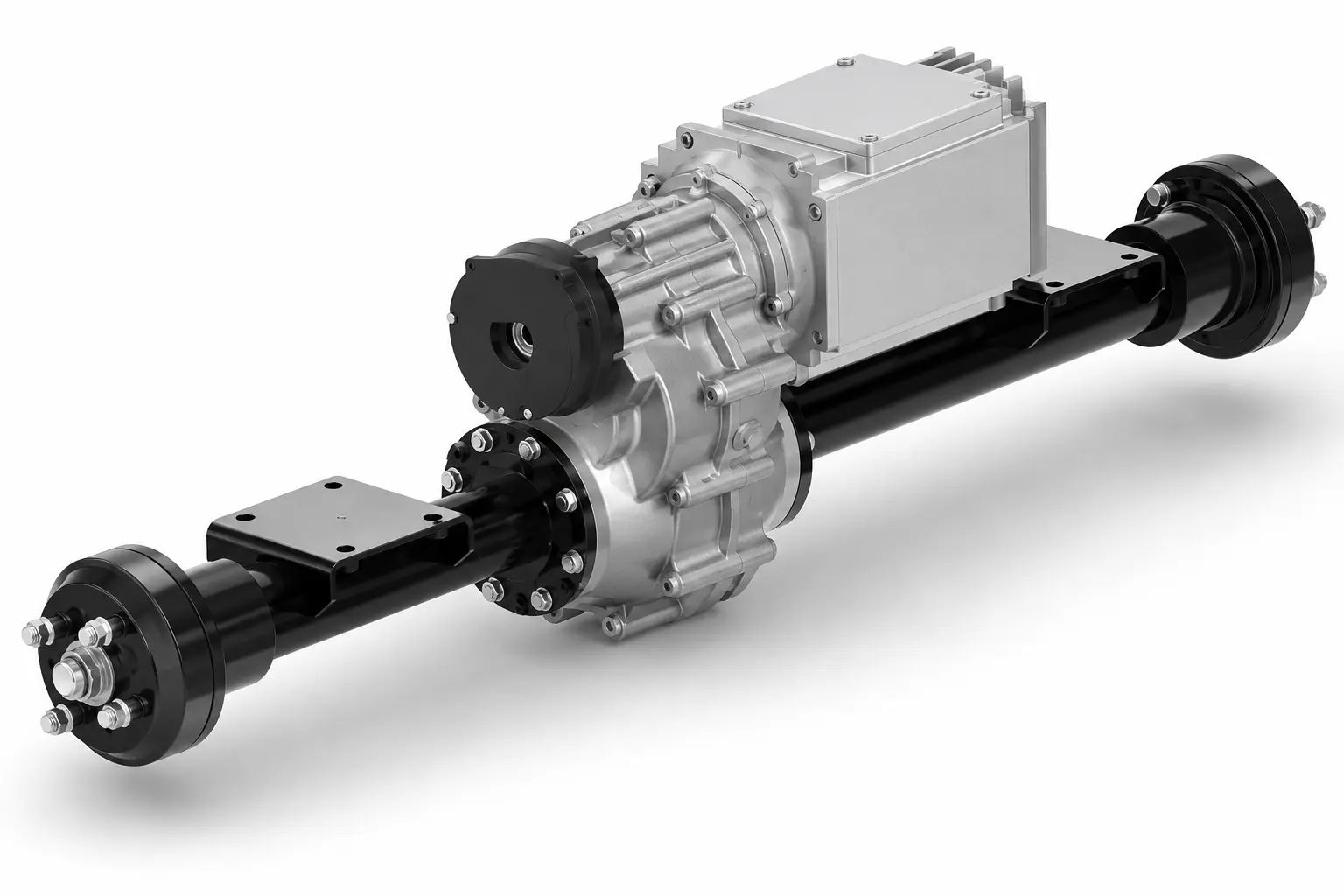

STX-E2
Brushless / PMSMTransaxle

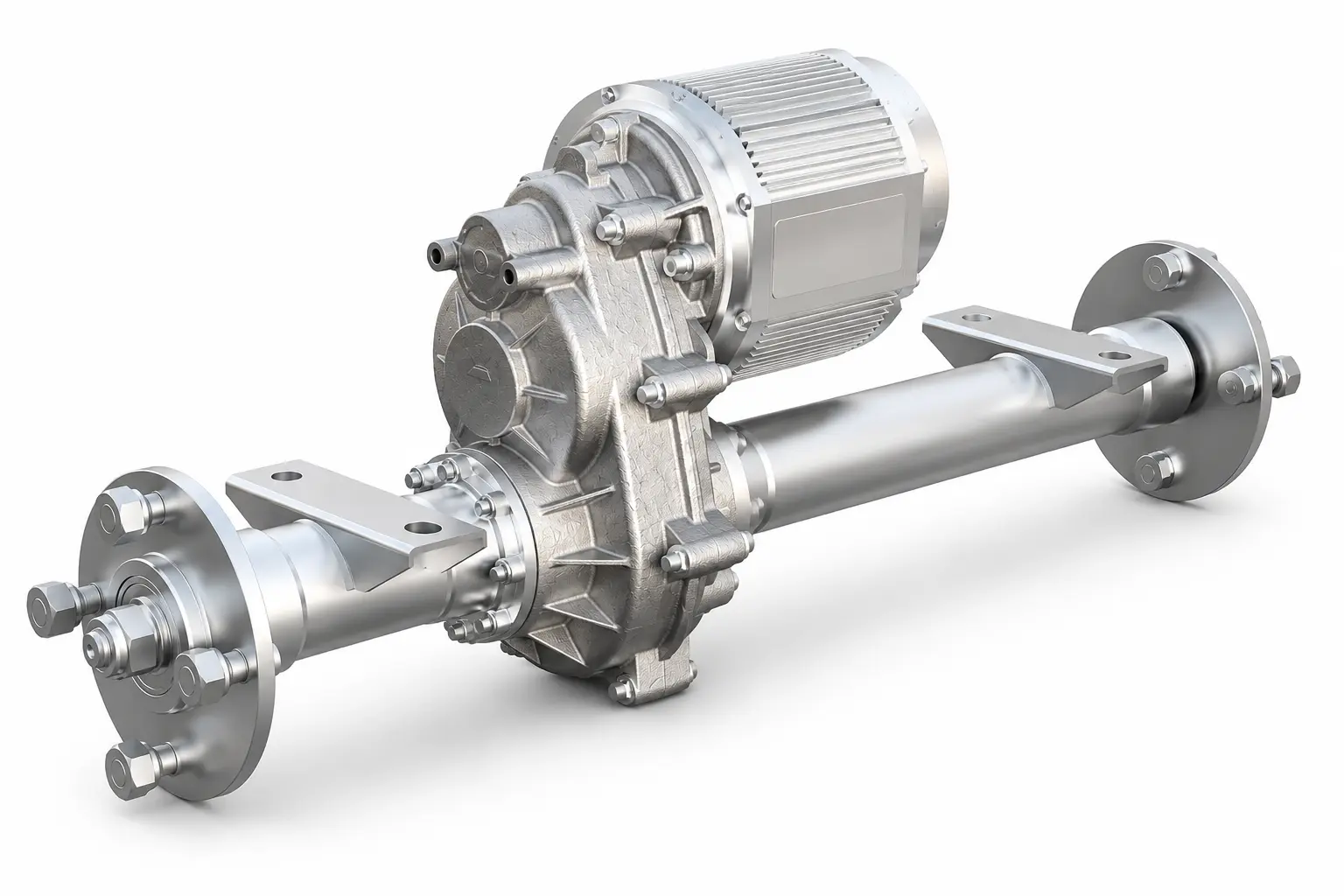

STX-E3
High-Power ElectricTransaxle

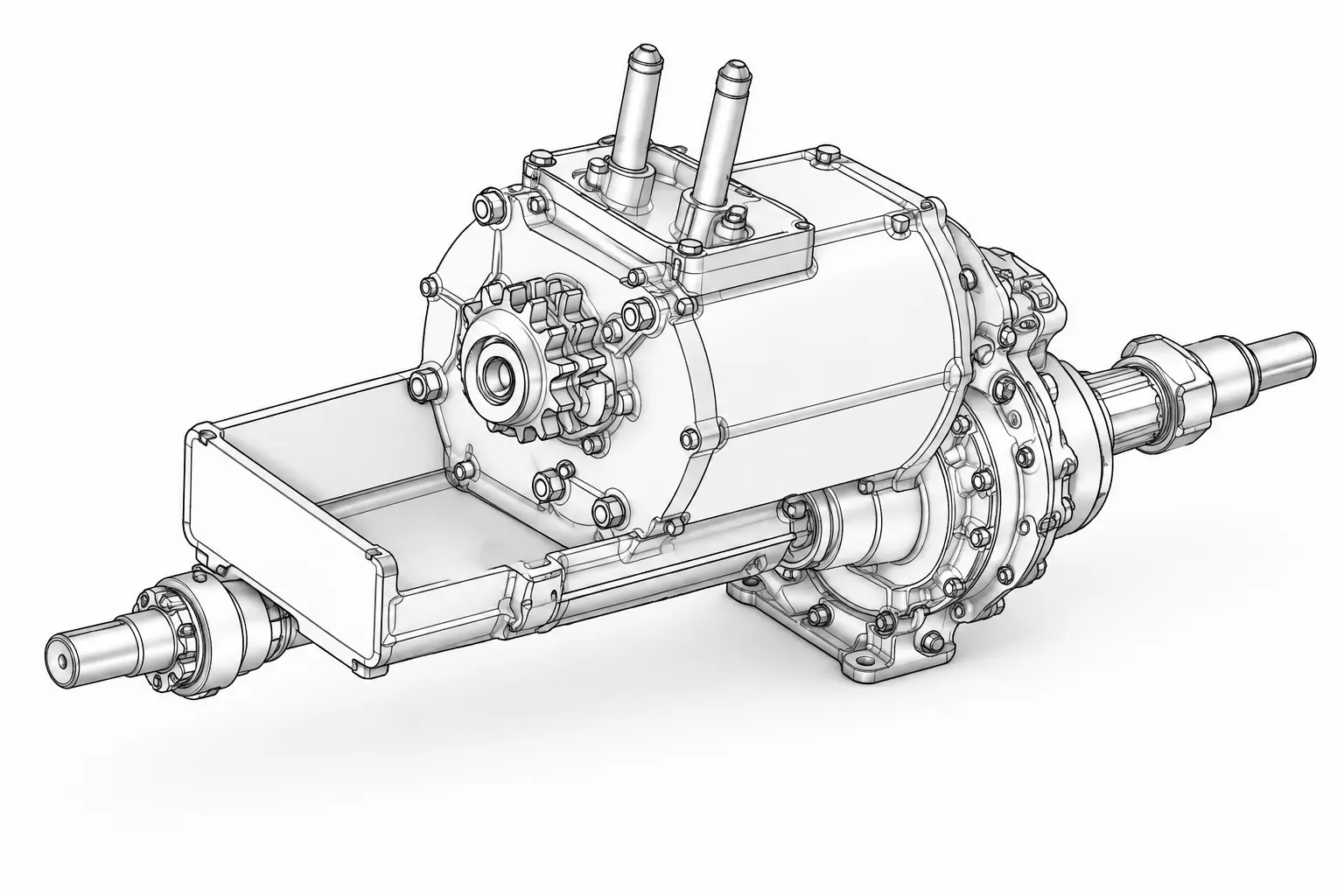

STX-900
Application-specificTransaxle Solution
2.
Technical Data
Power Range: 150–11,000 W
Speed Range: 50–500 rpm
| Series | Voltage (V) | Motor Technology | Power Range (W) | Speed Range (rpm) |
|---|---|---|---|---|
| STX-B1 | 12–24 | PMDC | 150–500 | 95–120 |
| STX-B2 | 24–36 | PMDC | 750–1,000 | 95–275 |
| STX-B3 | 36–48 | PMDC | 800–1,300 | 95–125 |
| STX-B4 | 24–48 | PMDC | 1,500–2,000 | 100–275 |
| STX-E1 | 24–48 | BLDC | 500–800 | 150–200 |
| STX-E2 | 48–72 | BLDC / PMSM | 3,000–5,000 | 100–500 |
| STX-E3 | 48–72 DC/AC | BLDC / AC | 6,000–11,000 | 150–275 |
| STX-900 | Application specific | Application specific | Bespoke | Bespoke |
STX transaxle technical dataReview the representative voltage, motor technology, output power, axle speed and configuration information.
Technical dataRequest Technical Data →Features
- Single-piece cast housing for improved gear alignment, rigidity and durability
- Optimised gear profile for efficient, low-noise operation
- Various reduction ratios and output-speed ranges
- Fully enclosed axle suitable for demanding indoor and outdoor applications
- Configurable mounting and track widths, including custom dimensions
- Multiple motor options: PMDC, BLDC and AC
- Electromagnetic power-off brake, brake cover and connector options
- Hub-type and custom axle configurations
- Application-specific motor, ratio, brake and mounting configurations available
Application-led transaxle selection
Define the Vehicle Duty Before Selecting the Drive
Use these six inputs to connect vehicle performance, motor technology, ratio and mechanical integration. Hover, focus or tap each item for the engineering implication.
3.
Industries & Applications
STX transaxles are designed for a wide range of mobility, utility and industrial applications, delivering efficiency, reliability and performance in demanding environments.
Cleaning & Floor-Care Equipment
Ride-on scrubbers and professional cleaning machines for commercial and industrial facilities.
Medical Mobility
Mobility scooters and personal transport solutions for healthcare and independent living.
Material Handling
Forklifts, pallet trucks and material-handling vehicles for warehousing and industrial operations.
Mobile Robots & AGVs
Automated guided vehicles and mobile robots for intelligent material movement.
Outdoor Power Equipment
Powered equipment and utility carts for outdoor, landscaping and grounds maintenance.
Utility & Light Vehicles
Utility, maintenance and low-speed vehicles for industrial and commercial use.
EAEngineered for Your Application
SDT works with you to configure or develop transaxle solutions around your vehicle requirements, including load, speed, ratio, track width, braking, mounting interfaces and environmental conditions.
Define the appropriate STX solution
Discuss Your Transaxle Requirement
Share the vehicle load, wheel size, speed, gradient, input power source, operating environment and duty cycle.
